Overview

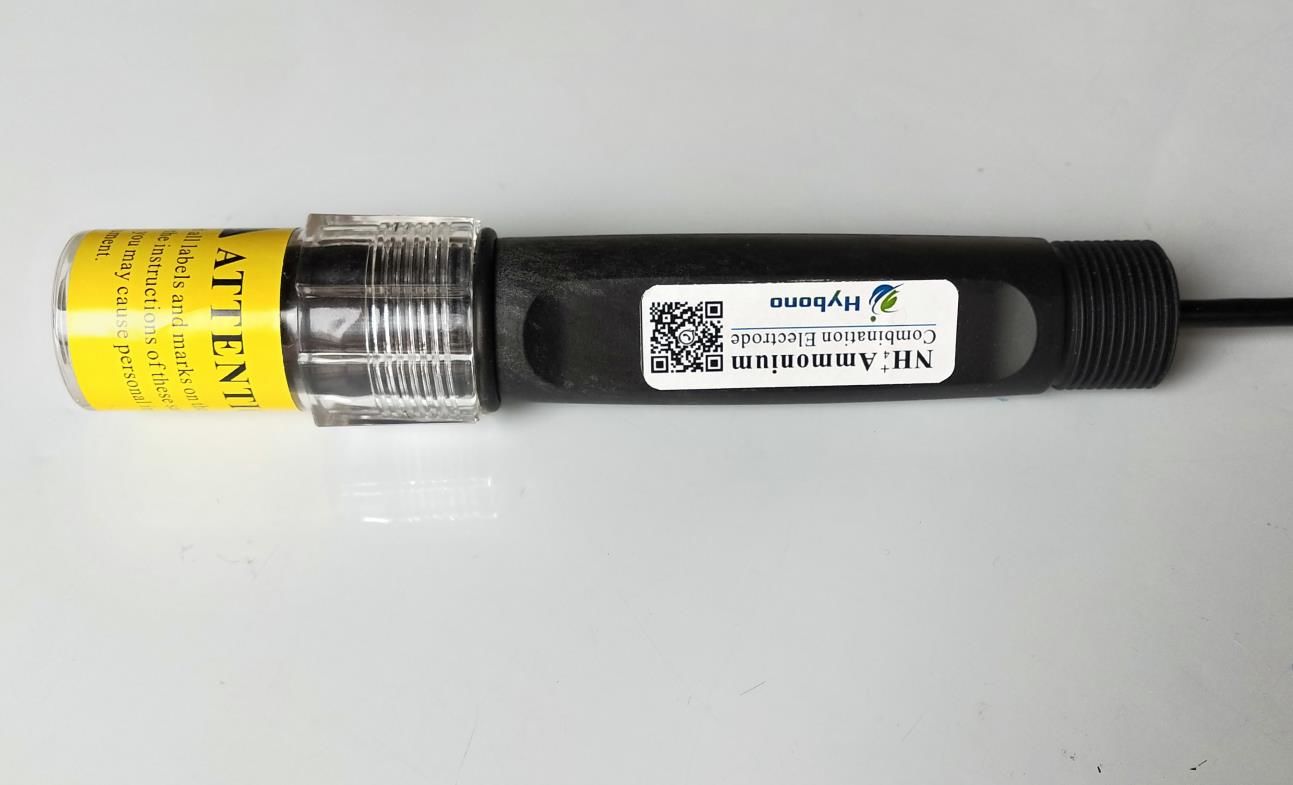

HY-CS6714D integrated online ammonia nitrogen sensor is fabricated using a PVC membrane-based ammonium ion selective electrode for testing ammonium ion content in water with temperature compensation to ensure fast, simple, accurate and economical testing.
Features
▲Independent research and development of polymer material diaphragm, loaded with optically active ingredients, solid and durable
▲No preprocessing required, fast response
▲No reagents, no secondary pollution, economical and environmentally friendly
▲Built-in temperature compensation algorithm to ensure measurement accuracy and long-term stability
▲Built-in plug-and-play full-function digital controller with calibration record storage function, no calibration required for the first use
| Technical Parameters | |
| Model No. | HY-CS6714 |
| Power | 9~36VDC |
| Measuring method | Ion electrode method |
| Housing material | PP |
| Size | 30mm* 160mm |
| Waterproof rating | IP68 |
| Measurement range | 0~1000mg/L (Customizable) |
| Resolution | 0.1mg/L |
| Accuracy | ±2.5% |
| Pressure range | ≤0.3Mpa |
| Temperature compensation | NTC10K |
| Temperature range | 0-50ºC |
| Calibration | Sample calibration, standard liquid calibration |
| Connection methods | 4 core cable |
| Cable length | Standard 10m cable or extend to 100m |
| Mounting thread | NPT3/4'' |
| Application | General application, river, lake, drinking water environmental protection, etc. |
-
