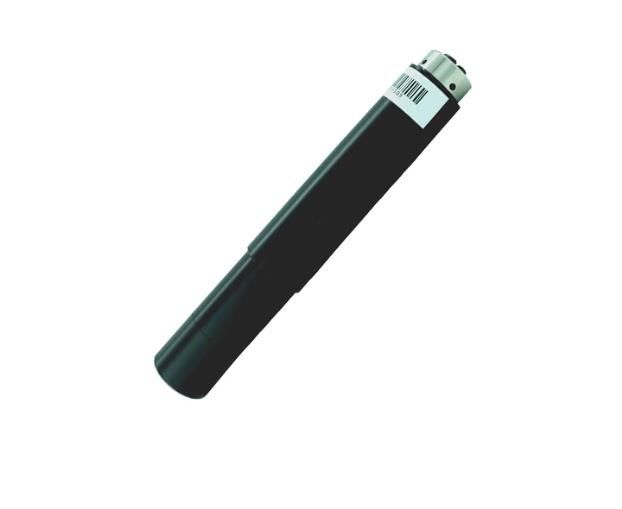

Digital pH Sensor
Overview
Hybono HY532-B is a general purpose digital pH sensor, which uses a rugged industrial electrode and a built-in temperature sensor for automatic temperature compensation, and supports RS485 Modbus digital output. It is ideal for long-term online monitoring.
Features
▲Range: 0-14 pH;
▲Accuracy: 0.1pH;
▲0~50 ℃; IP68 protection, water depth within 10 meters;
▲Built-in temperature sensor, automatic temperature compensation;
▲Support RS-485, MODBUS protocol, adopt high-performance industrial online electrode, can work stably for a long time.
| Technical Parameters | |
| range | 0-14 pH |
| Accuracy | ±0.1 pH |
| Resolution | 0.01 |
| great depth | 10 m |
| Storage temperature | 0～60ºC |
| Operating temperature | 0～50ºC |
| Output 4-pin connector | Modbus RS-485 |
| Power consumption DC | 5V, I<50mA |
| size | Φ26*167.5mm |
| Body Materials | POM |
| calibration | 3 point calibration |
